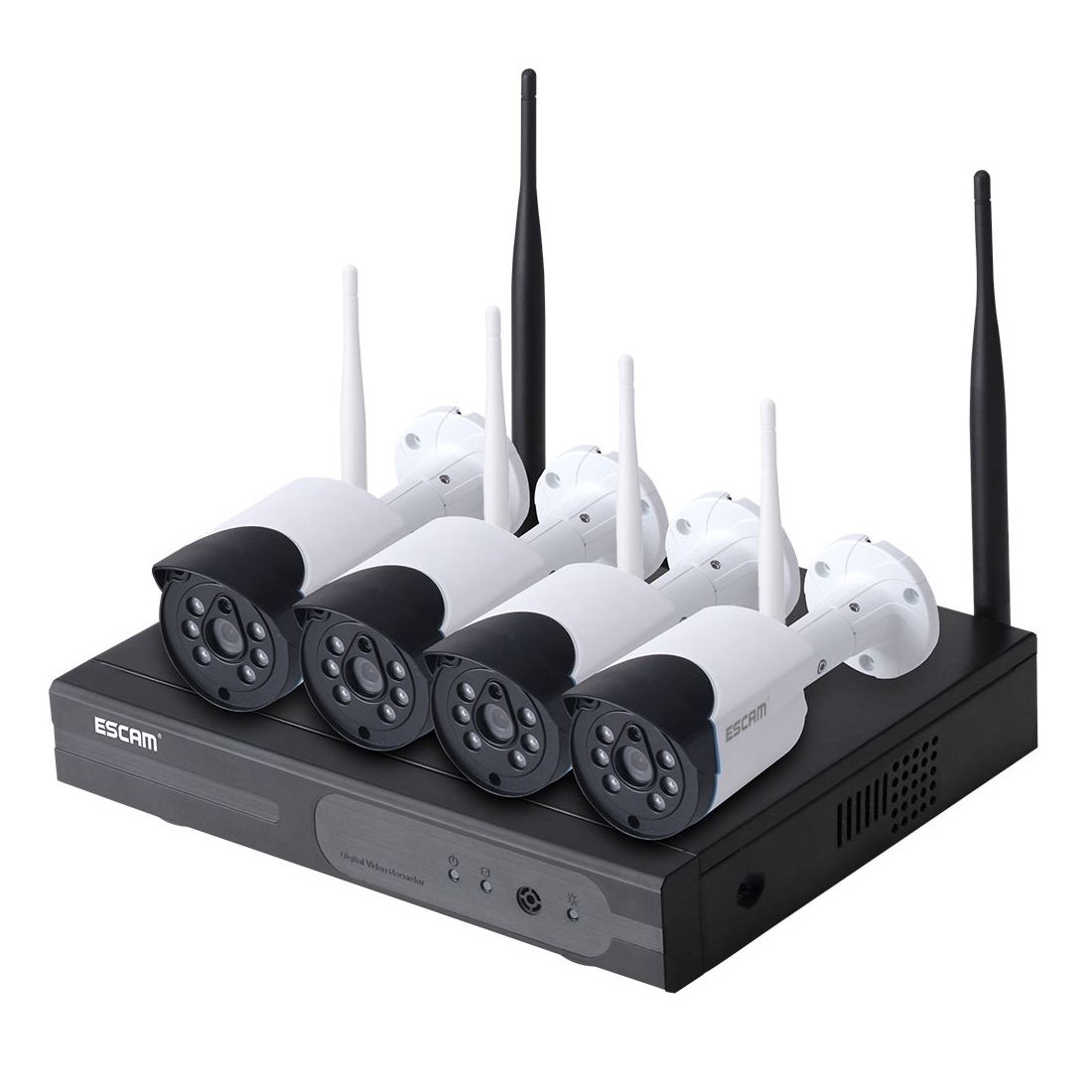

4 x 1080P 1/4 inch CMOS 1.0 Mega Pixel WiFi Bullet IP Camera
Systems Includes Night Vision / Motion Detection
View Specifications Page for more details

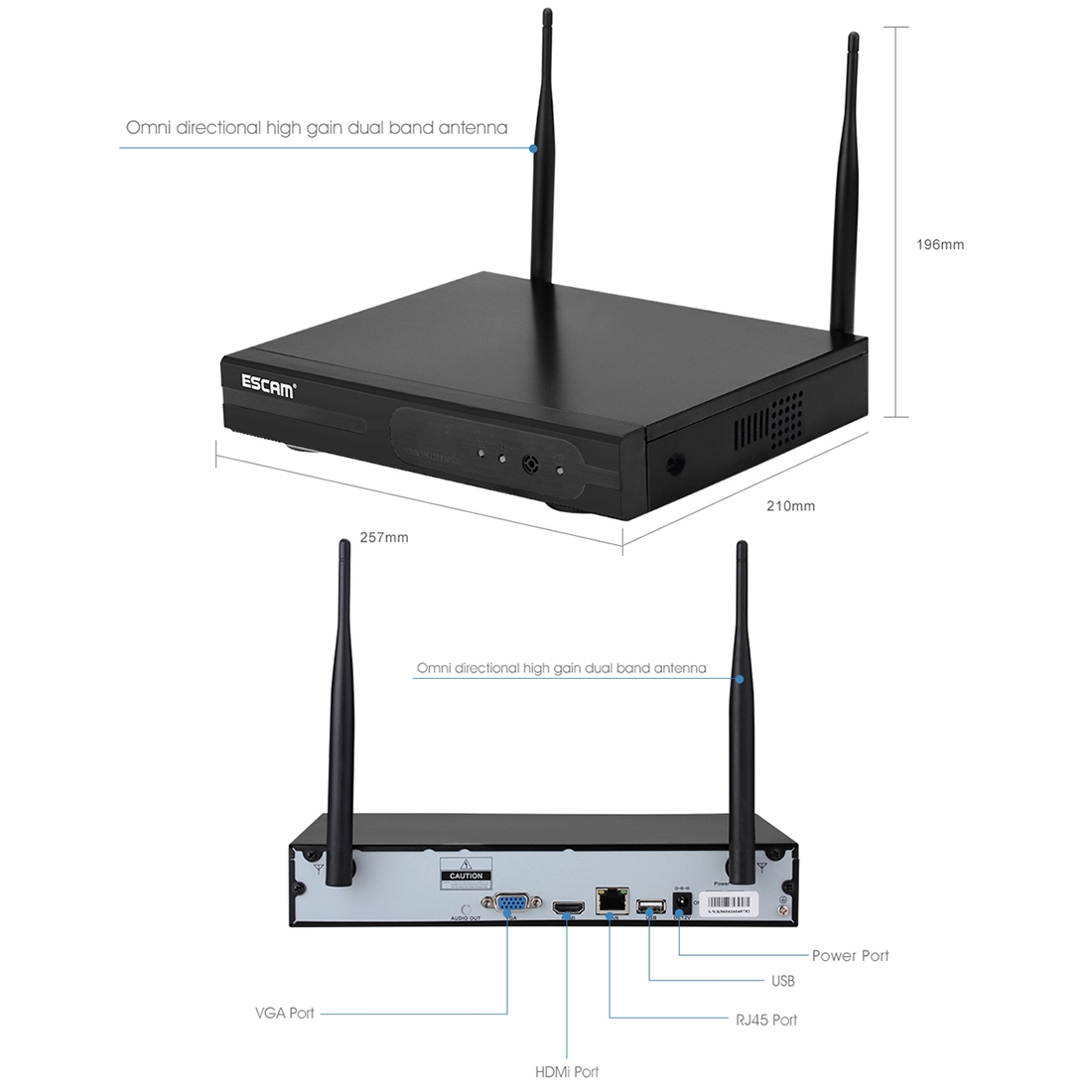

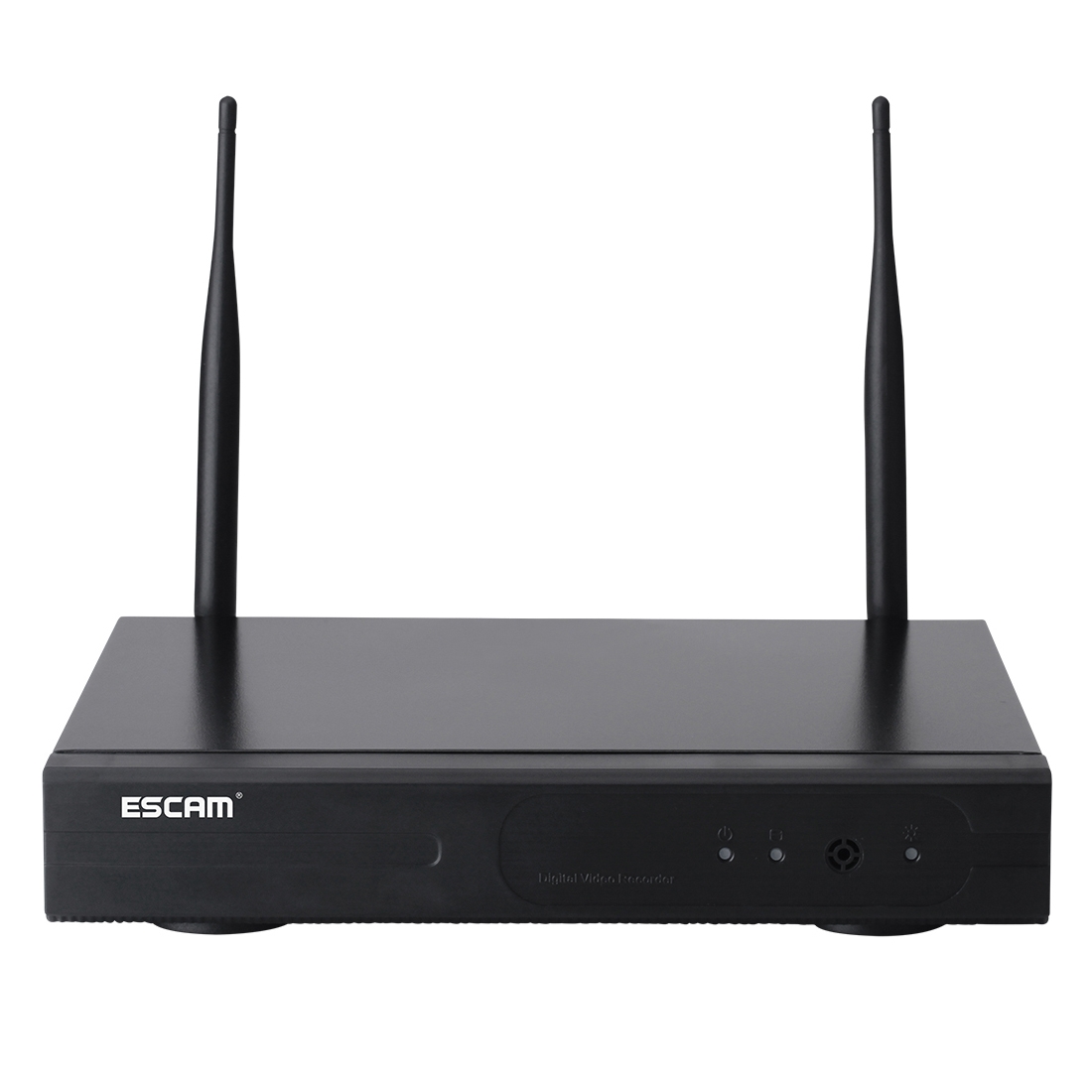

| Wireless NVR Specification ESCAM WNK403 | ||
| video input | Network Video | 4CH |
| Network video input broadbank | 20Mbps | |
| video output | HDMI input | 1ch,resolution:1024×768,1366×768, |
| 1920x1080p | ||
| VGA output | 1ch,resolution:1024×768,1366×768, | |
| 1440×900,1920x1080p | ||
| AV CODEC Specification | Video Resolution | 1080P |
| synch-playback | 4CH | |
| Video Control | Video/Capture mode | Maual,Time,Motion,Alarm |
| Playback mode | Real time,Routine,Event | |
| Backup | USB backup | |
| Hard Disk | Type | 1*SATA interface |
| Max Capacity | 4 TB at most for each | |
| External Interface | Network Interface | one adaptable RJ45 10M/100M, one 2.4Ghz WIFI interface |
| USB Interface | USB 2.0 | |
| Network Control | Protocol | UPnP (play&plug)/SMTP (email survice)/PPPoE (dial-up) |
| DHCP (Automatically obtain an IP address) | ||
| Others | Power Supply | DC12V2A |
| Power Consumption (W) | ≤5W(Without HDD) | |
| Operate Temperature (°C) | -10℃~+55℃ | |
| Working Humidity (%) RH | 10%~90% | |
| Weight(excluding HDD) | 0.73Kg | |
| Dimensions | 257*210*42mm | |

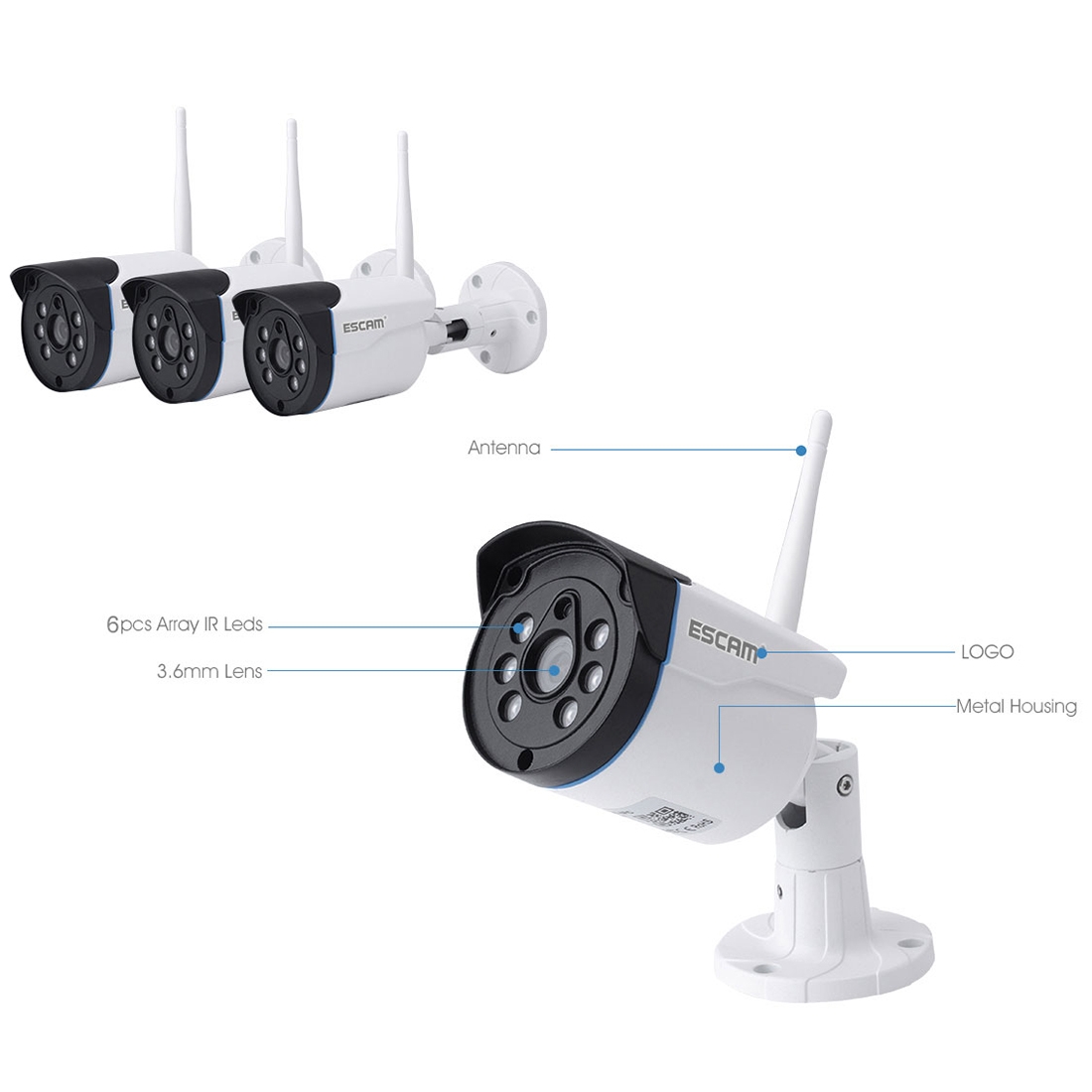

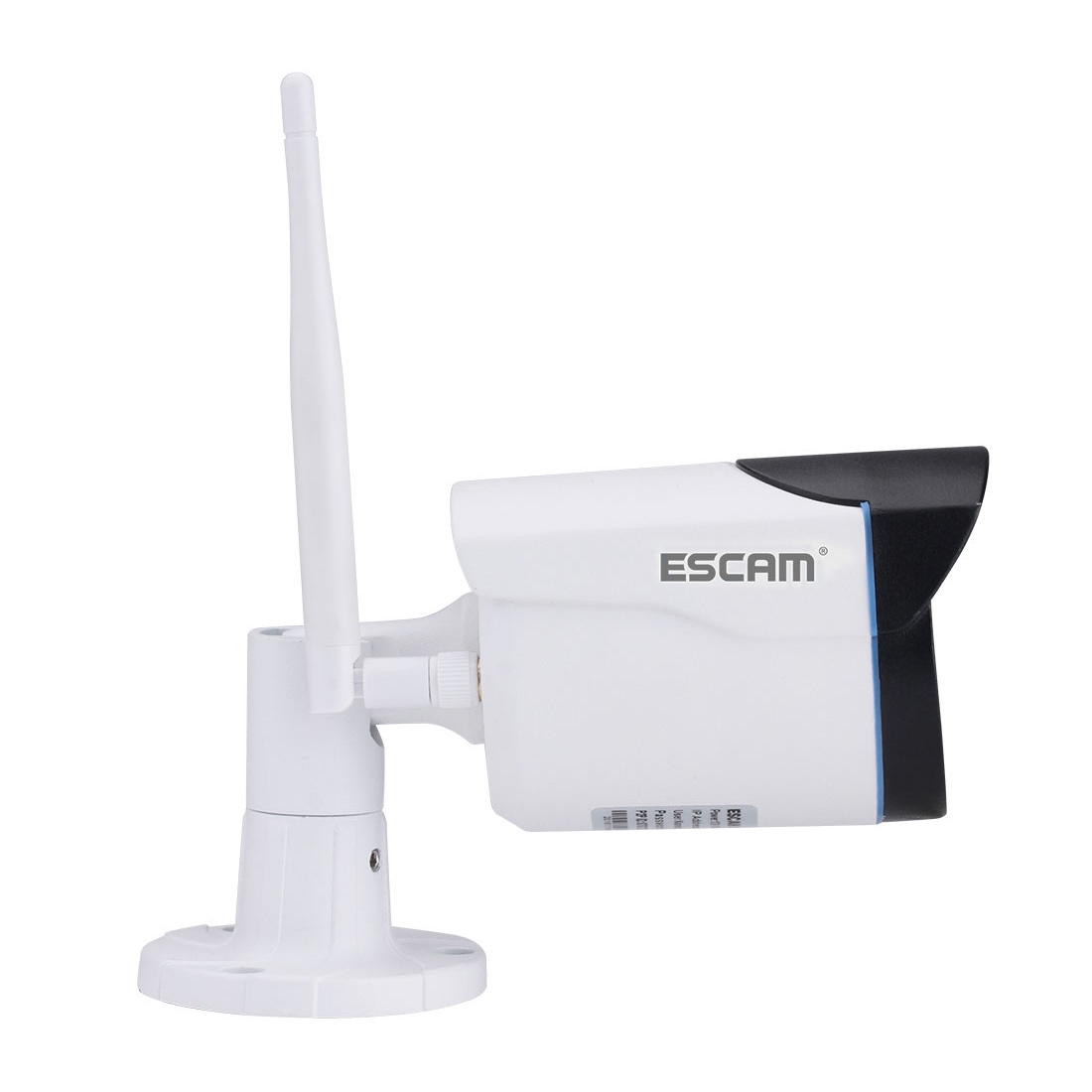

| IPC Specification | ||
| Sensor | 1/4″ Progressive CMSO Sensor | |
| Signal System | PAL/NTSC | |
| Resolution | 1280 x 720 | |
| Minimum illumination | Color: 0.1 Lux; B/W: 0.01 Lux | |
| Shutter | 1/25s to 1/25,000s | |
| Lens | 3.6mm | |
| OSD | Date Time & Title | |
| White Balance | Auto | |
| Day&Night | Auto / Color / BW | |
| 3D-DNR | Auto | |
| Mirror/Flip | On / Off | |
| Frame Specification | Three Streaming at the Same Time: | |
| H.264 1280×720@15fps or below | ||
| H.264 640×480@30fps or below | ||
| S/N | > 39.1 Db | |
| Interface | RJ45 / WIFI 802.11b/g/n | |
| General Specification | Anti-thunder Level | Standard IEC61000-4-5 |
| Working Temperature/Humidity | -10℃to +50℃/ 30% to 80% RH | |
| Working Temperature/Humidity | -20℃to +60℃/ 20% to 90% RH | |
| Power Input | DC12V1A | |
| Power consumption | ≤6W | |
| Level of Protection | IP66 | |
| Weight | 0.25kg | |
| Dimensions | 107 * 68 * 60mm | |
| Package | Package Dimension | 340*185*270mm |
| Package Weight | 2.8kg | |

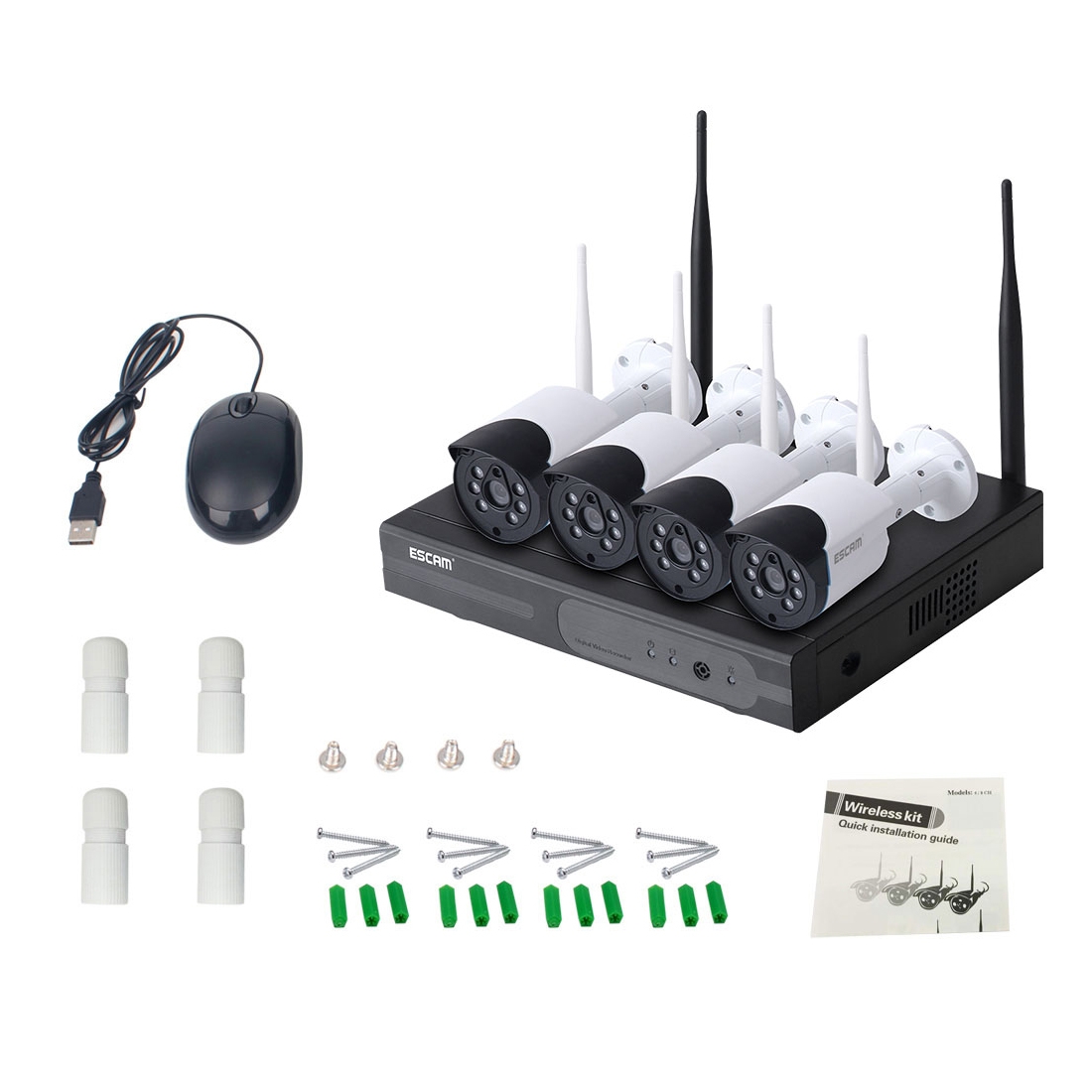

| packing list | WIFI NVR*1,WIFI Camera*4,Screw bag*5,Mouse*1,Poweradapter*5, User manual*1,Waterproof hat*4,network cable*1. | |
